Leader in Tape Maintenance and Hard Drive Destruction Equipment

Manual & Motor Operated Hard Drive Destroyers
Model MHDD-N & MX2-N

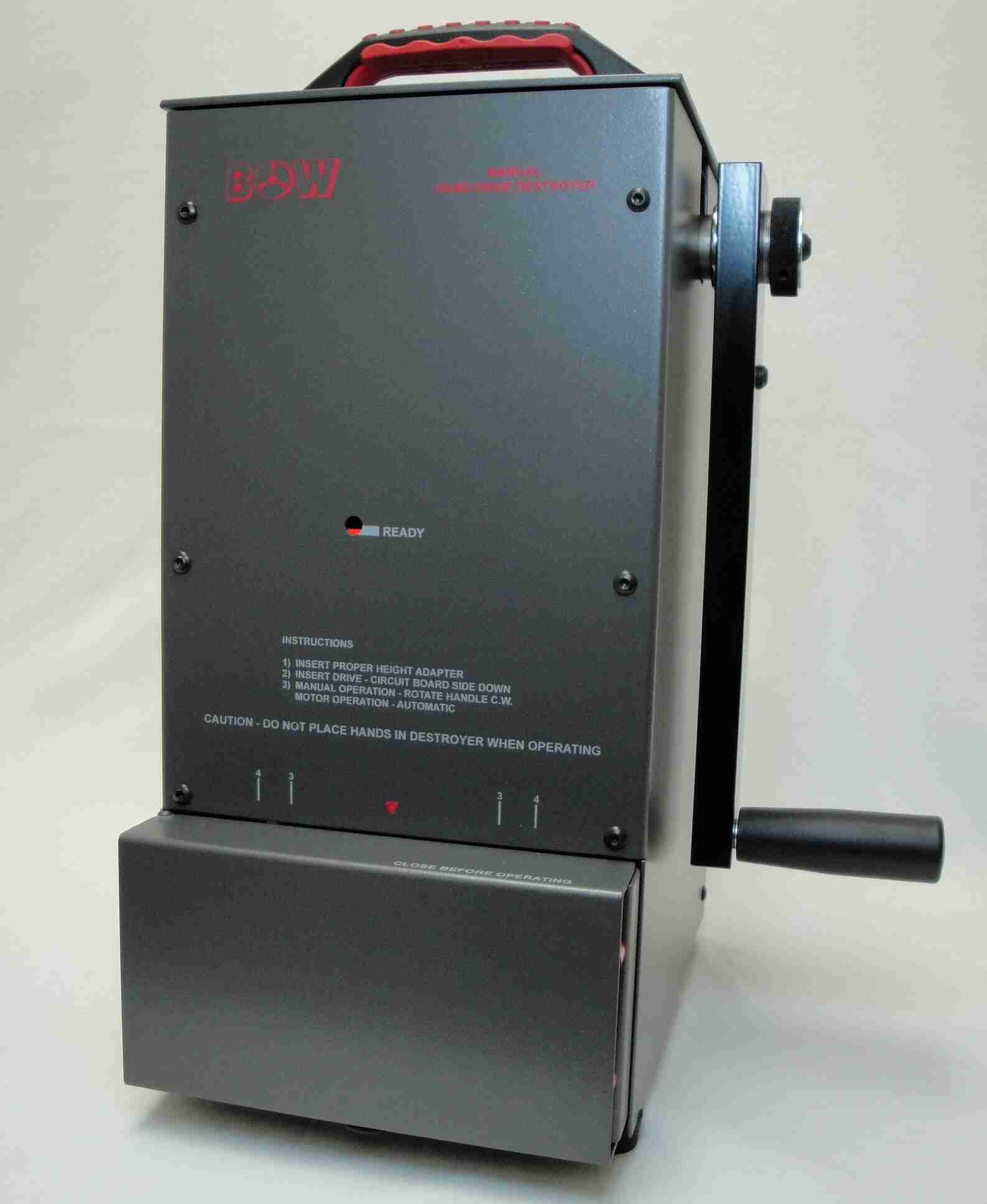

Model MHDD-N - NSA/CSS Approved Manually Operated



FEATURES
  • NSA/CSS Approved for Destruction of 1-inch, .65-inch, 1.65-inch & Laptop Drives
  • EXTREMELY Rugged & Affordable
  • Destroys HDD & SSD Drives
  • Used by DoD for hard drive destruction
  • The GREEN Solution - NO POWER Required
  • Compact, Light Weight & Portable - Only 49 lbs.
  • Safety Door
  • Debris Tray
  • FAST (8 seconds or less), SAFE & RELIABLE
  • Easy Hand Crank Operation
  • Rear Output Slide Option Available
  • Universal Mount Kit Available
  • Upgradeable to Motor Operation (Model MX2-N)
  • Transport & Storage Case Available
  • Rackmountable Slide-out Shelf Available





The BOW Industries Hard Drive Destroyers are light weight, compact and powerful. With their low cost and versatility these destroyers are perfect for both government and commercial markets where tight budgets are an important consideration.

FAST - COMPACT - POWERFUL - LIGHT WEIGHT - PORTABLE - VERSATILE

These small heavy-duty destroyers are maintenance free. No messy fluids or external components to deal with and no adjustments or calibrations necessary.

The MHDD-N Manually Operated Destroyer is NSA/CSS Approved and is extremely operator friendly. The user need only insert the hard drive into the slot, close the safety door and turn the easy to turn handle 8 rotations. The destroyer also pushes the hard drive out for easy removal. This simple operation takes approximately 8 seconds or less.

The MX2-N Motor Operated Destroyer with Manual Feature is NSA/CSS Approved and enables the user to operate the unit hands free. Inserting the hard drive and closing the safety door automatically starts the destruction process, allowing destruction every 10 seconds (12 seconds for 50 Hz units). If power is interrupted the operator has the manual operated handle to continue. No interruption or setup. Simply grasp the handle and continue the operation manually. A feature none of the competition can claim.

The MX2-N with Universal Power Option gives the user additional versatility in all environments and operates in three power modes: Battery Power, AC Wall Power, or Manual. The battery holds a charge sufficient to destroy more than 100+ hard drives (double that with the optional battery pack).

________________________________________________________________________________________________________

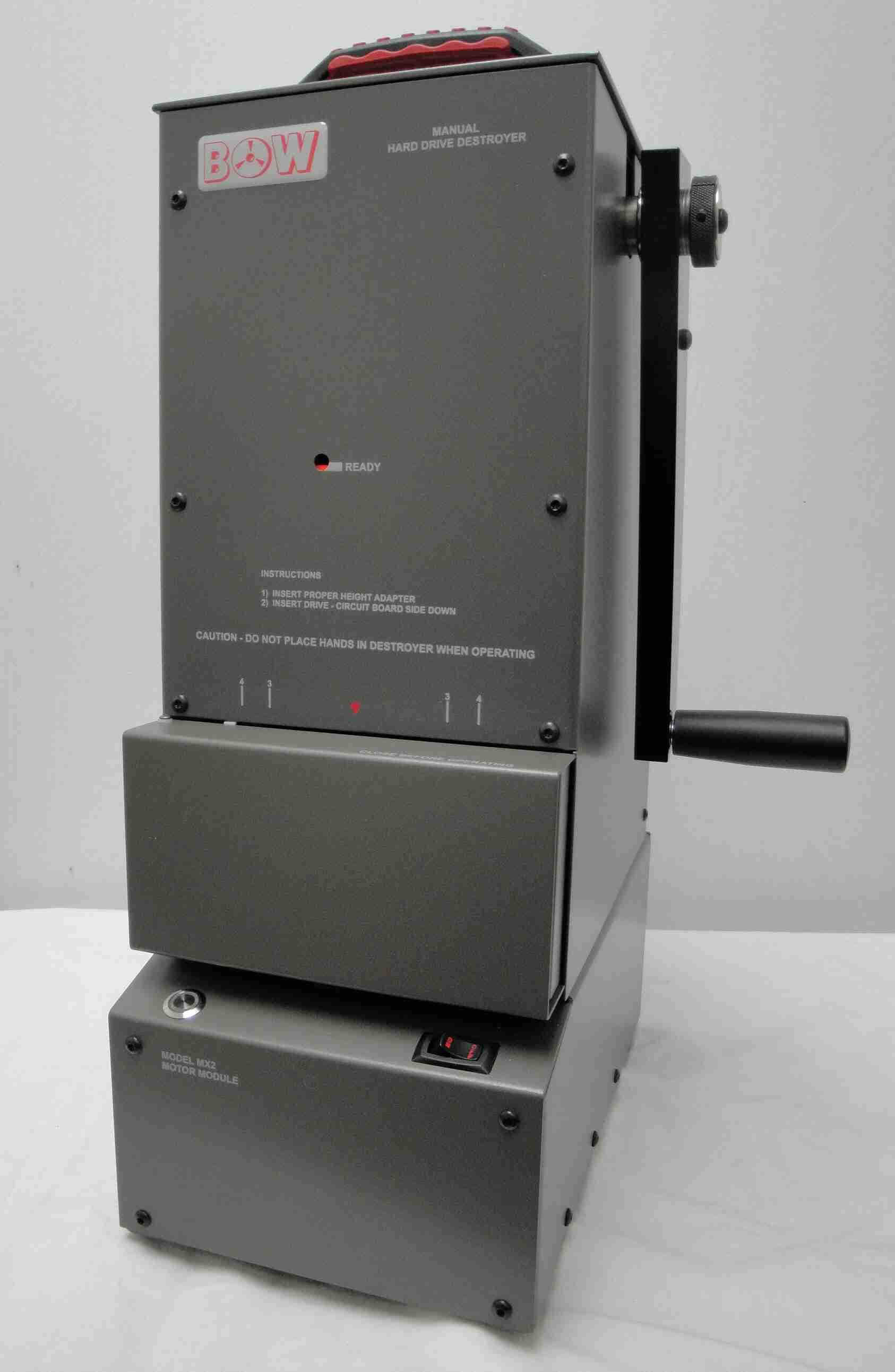

Model MX2-N NSA/CSS Approved Motor Operated with Manual Feature

FEATURES
  • NSA/CSS Approved for Destruction of 1-inch, .65-inch, 1.65-inch and Laptop Drives
  • EXTREMELY Rugged Design & Affordable
  • Destroys HDD & SSD Drives
  • Dual Operation - Motor or Manual
  • Used by DoD for Hard Drive Destruction
  • The GREEN Solution to Hard Drive Destruction
  • Compact, Light Weight & Portable - Only 63 lbs.
  • Safety Door
  • Debris Tray
  • FAST (10 seconds or less), SAFE & RELIABLE
  • Rear Output Slide Option Available
  • Universal Mounting Kit Available
  • Transport and Storage Case Available
  • Rackmountable Slide-out Shelf Available



___________________________________________________________________________________________

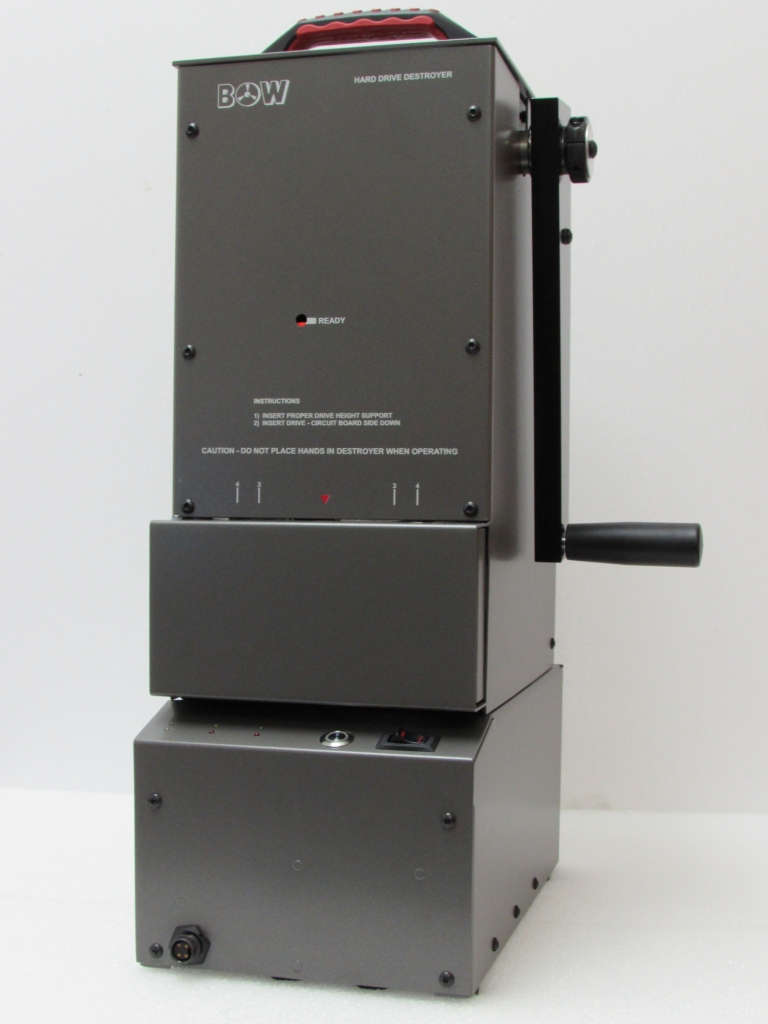

Model MX2-N with Universal Power (BAT) Option

ADDITIONAL FEATURES
  • Only Universal Powered Hard Drive Destroyer Available
  • Destroys 100+ Drives Under Battery Power
  • Internal Battery & Charger
  • External Battery Available
  • Battery, AC Wall Power & Manual Features
  • Ideal for use in Mobile Units, Embassies, Military Sites, Commercial Applications, etc.
  • Compact, Light Weight & Portable - Only 67 lbs.





The Model MHDD-N, and MX2-N, when in manual mode, are designed to require a minimal amount of manual exertion to turn the handle.

The internal workings of the units press down on the drive, bending it approximately 90 degrees. This bend renders the hard drive useless by bending the platters, damaging the heads, motor and circuit board. To keep the speed at an optimum, the destroyers reset automatically. No time is wasted returning the blade to position or turning the handle backwards.

Government specifications require that a hard drive needs to be destroyed so that no equipment or persons can spin or operate the drive. Physical destruction is preferred because it gives clear visible evidence that the hard drive is inoperable. The MHDD-N and MX2-N units easily meets these requirements and is an inexpensive alternative to expensive power destroyers and shredders.

Today, with the threat of identity theft and the war on terror raging, it is important to keep information secure and out of the wrong hands. In emergency situations destruction by rapid and reliable means to insure that the information is irretrievable is top priority. It is for these situations that the MHDD-N and MX2-N destroyers are perfectly suited.


Meets Government Requirements:

The BOW Models MHDD-N and MX2-N are NSA/CSS Approved for the destruction of 1-inch, .65-inch, 1.65-inch and Laptop Drives. The also meet government compliance standards including: HIPAA, PIPEDA, GLBA, NIST, PCI DSS & more


Click here to view available options

SPECIFICATIONS

Model Numbers

MHDD-N - Manual Operated Hard Drive Destroyer
MX2-N - Motor & Manual Operated Hard Drive Destroyer

Media Destroyed

Handles all 3.5-inch Form-Factor Drives including .65-inch, 1-inch, and 1.65-inch. Handles 2.5-inch Laptop hard drives with the LTH option. Handles SSD (NOT NSA Approved for SSD) drives in 3.5 Form Factor and 2.5 Form Factor (with LTH Option).

Options

LTH - Laptop Option & Holder (2.5" Form Factor Drives)
BAT - Universal Power Option - Adds BATTERY Feature
EBP - External Battery Pack (for units with BAT option)
CHG - Battery Charger (for units with EBP option)
ROS - Rear Output Slide
ATR - Autoloader & Slide with Rear Output (MX2-N Only)
RCC - Remote Control Communications (MX2-N Only)
CASE - Transport & Storage Case
EIA - Rackmountable Slide-out Shelf Option (for 19" EIA Racks, 19" to 28" deep, Includes Slides)
MNT - Universal Screw Down Mounting Kit

Manual Operator Exertion (Manual Operation)

Typical Commercial Drives (3.5") Typically 4 lbs. exertion
Hardened (Heavy Shielded) (3.5") Typically 12 lbs. exertion maximum

Power Supply

MX2: 100-240 VAC; Standard Voltages: 115 VAC, 60 Hz; 220 VAC, 60 Hz; 230 VAC, 50 Hz (Specify voltage and frequency when ordering)

MX2-N with Universal Power Option: 100-240 VAC, 50/60 Hz, Battery Power Feature; Optional Battery Pack

Operating Time

Manual - 8 seconds or less (dependent on operator)
Motor - 60 Hz Units - 10 seconds
Motor - 50 Hz Units - 12 seconds

Destruction Method

O1 Hardened Steel Blade - Bends platters, damages heads, motor and circuit board

Physical Dimensions

MHDD-N: 7 1/4" W x 9 1/4" D x 16 1/2" H (18.4 cm x 23.5 cm x 42 cm); 11" (28 cm) wide with handle

MX2-N: 7 1/4" W x 11 5/8" D x 21" H (18.4 cm x 29.5 cm x 53.3 cm)
11" (28 cm) wide with handle

MX2-N with Universal Power (BAT) Option: 7 1/4" W x 11 5/8" D x 21.5" H (18.4 cm x 29.5 cm x 54.6 cm); 11" (28 cm) wide with handle

Weight

MHDD-N: 49 lbs. (22 kg)
MX2-N: 63 lbs. (28.6kg)
MX2-N with Universal Power (BAT) Option: 67 lbs (30.4 kg)

Shipping Information

MHDD-N

Shipping Weight - 60 lbs (27.2 kg) (depending on options ordered)
Shipping Dimensions: 27"x17"x17" (68.6 cm x 43.2 cm x 43.2 cm)

w/ CASE Option: Weight - 80 lbs (36.3 kg) (depending on options ordered) Shipping Dimensions: 25" x 20" x 15" (63.5 cm x 50.8 cm x 38.1 cm)

MX2-N

Shipping Weight - 80 lbs (36.3 kg) (depending on options ordered)
Shipping Dimensions: 33"x17"x17" (83.8 cm x 43.2 cm x 43.2 cm)

w/ CASE Option: Weight - 119 lbs (54 kg) (depending on options ordered)
Shipping Dimensions: 32" x 25" x 19" (81.3 cm x 63.5 cm x 48.3 cm)

MX2-N with Universal Power (BAT) Option

Shipping Weight - 86 lbs (39 kg) (depending on options ordered)
Shipping Dimensions: 33"x17"x17" (83.8 cm x 43.2 cm x 43.2 cm)

Maintenance

Occasional vacuuming of debris drawer and internal housing

Operating Temperature

Max. 176 F (80 C) Continuous Duty

Warranty

1 year Parts & Labor; 1-year warranty extension available; Lifetime Warranty on Bender

Cage Code

53468

Patent

Patent Pending with U.S.P.T.O.
